Details

Model Number: HS-3000A2
Product Category: Fume Extractors
Price: $1,504
Overall Dimensions:

The Scavenger Series portable fume/particle extractors are an inexpensive solution to all small scale, yet potentially hazardous, fume and particle problems. These powerful yet quiet, fully portable systems are ideal for use in work spaces that are too small for conventional fume hoods. They can be used on the table top or wall mounted. The unit combines a 530 cfm blower with either one or two intake scoops, each with a 5 foot heavy duty flex hose, which can be easily moved to capture the contaminant at the source. Each blower is operated with a variable speed control knob and is virtually vibration free.

Primarily designed to improve safety and hygiene in light industrial settings, the Scavenger can also be used in laboratories where a fume source can be isolated. Examples include wall mounted units to capture harmful exhaust from microwave ovens in histology labs, and spectrophotometers in analytical chemistry applications.

Like all Airfiltronix systems, the Scavengers can accommodate a variety of filters: charcoal, four stage dacron, aluminum, and HEPA filters, to capture a broad range of chemical fumes, odors and particles - at their source.

Specifications

Specifications For: HS-3000A2 - Two Hose Scavenger
Model No.	HS-3000A2
Workspace	NA
Blower Dim	16''H x 12.5''D x 23.5'' W
Hose	5'' diameter heavy duty chemical resistant PVC flexible hose. Single 5 foot length for HS-3000A1 and double 5 foot lengths for HS-3000A2.
Standard Nozzles	Wedge shaped nozzles measure 9.5'' D x 6.5''H, sloping to 3.5'' H x 6.5
Power Requirements	115V AC, 100 Watts, 50/60 Hz, 230V AC optional for export.
Weight	43 lbs.
Custom Variations	We can customize the scavenger series in many different configurations (i.e. wall mounted blower, mini-hood with hose attachment, unique adapter fabricated to attach to existing equipment - please call to discuss your special application).
Noise Level	A weighted noise level 68dB max. at 1 meter

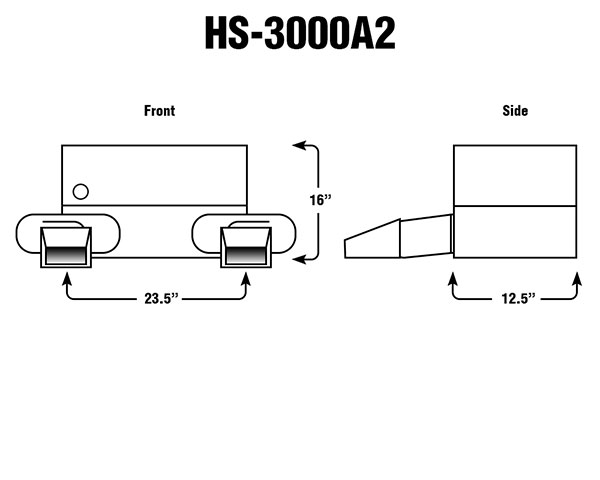

Diagrams

Performance Statistics

	HS-3000A2
Filters Installed	Max Airflow CFM	Face Velocity FPM
None	273	1010
HEPA	154	565
HEPA/Dacron/.5" Carbon	143	525
HEPA/Dacron/2" Carbon	110	405
0.5" Carbon	228	840
2" Carbon	160	590
2 each - 2" Carbon	120	440
